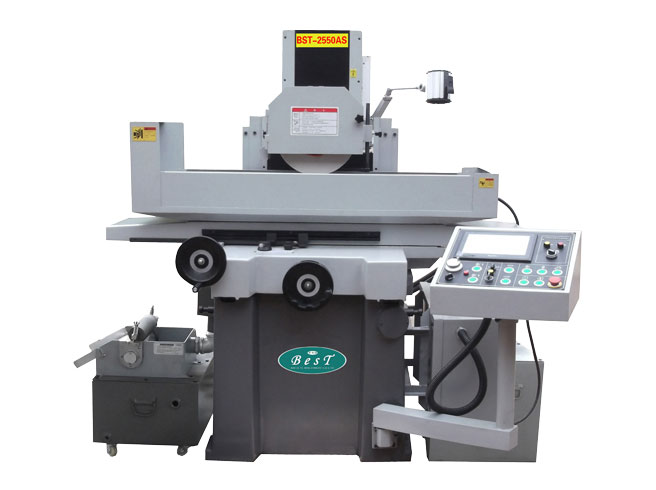

BST-2550AH
Technical specification sheet
Items | Specification |
Maximum stroke (width x length) | 270×540mm |
Distance from the working table to the center of the spindle | 510mm |
Grinding area | 250×500mm |
Running speed of the table | 5～25m/min |
Machining precision working accuracy | 300:0.005mm |
Surface roughness | Ra≤0.25μm |
Tank horsepower | 1.5KW/2HP |
Scale of hand wheel for cross feed, 1rev. | 5 |
Scale of hand wheel for cross feed, 1gra. | 0.02 |
Scale of hand wheel for vertical feed, 1rev. | 2 |
Scale of hand wheel for vertical feed, 1gra. | 0.01 |
Grinding wheel size(outer diameter × width × inner diameter) | 200×6～12×31.75mm |
Spindle motor | 1.5KW/2HP |
Speed of grinding wheel, 50/60HZ | 50HZ 2800R.P.M |
Gross Weight | 1500Kg |
